Label propagation based on Markov random walks

The goal of this algorithm proposed by Zhu and Ghahramani is to find the probability distribution of target labels for unlabeled samples given a mixed dataset. This objective is achieved through the simulation of a stochastic process, where each unlabeled sample walks through the graph until it reaches a stationary absorbing state, a labeled sample where it stops acquiring the corresponding label. The main difference with other similar approaches is that in this case, we consider the probability of reaching a labeled sample. In this way, the problem acquires a closed form and can be easily solved.

The first step is to always build a k-nearest neighbors graph with all N samples, and define a weight matrix W based on an RBF kernel:

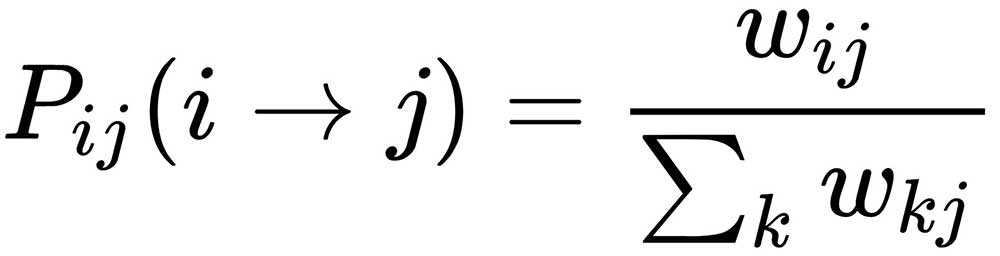

W_ij = 0 is x_i, and x_j are not neighbors and W_ii = 1. The transition probability matrix, similarly to the Scikit-Learn label propagation algorithm, is built as:

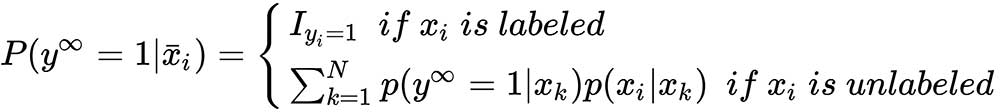

In a more compact way, it can be rewritten as P = D^-1W. If we now consider a test sample, starting from the state x_i and randomly walking until an absorbing labeled state is found (we call this label y^∞), the probability (referred to as binary classification) can be expressed as:

When x_i is labeled, the state is final, and it is represented by the indicator function based on the condition y_i=1. When the sample is unlabeled, we need to consider the sum of all possible transitions starting from x_i and ending in the closest absorbing state, with label y=1 weighted by the relative transition probabilities.

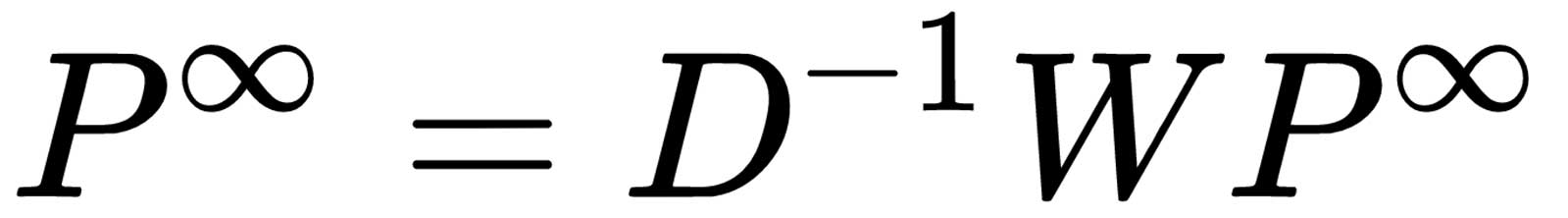

We can rewrite this expression in matrix form. If we create a vector P^∞ = [ P_L(y^∞=1|X_L), P_U(y^∞=1|X_U) ], where the first component is based on labeled samples and the second on the unlabeled ones, we can write:

If we now expand the matrices, we get:

As we are interested only in the unlabeled samples, we can consider only the second equation:

Simplifying the expression, we get the following linear system:

The term (D_uu - W_uu) is the unlabeled-unlabeled part of the unnormalized graph Laplacian L = D - W. By solving this system, we can get the probabilities for the class y=1 for all unlabeled samples.
